Quick Reference Specification: Tested Pressure Washer Gun Hardware Benchmarks

Direct engineering comparison contrasting essential hardware parameters across the five top-rated replacement pressure washer gun configurations tested in our facility.

Best Pressure Washer Guns at a Glance

The ranking above is based on mechanical fitment and workflow practicality rather than simply chasing maximum PSI. A compact short gun is the superior tool for a vehicle, whereas a long curved wand excels on residential driveways.

Pressure Washer Trigger Guns Regulate Hydraulic Flow Between High-Pressure Hoses and Spray Nozzles

A pressure washer gun is the hand-operated valve between your machine’s high-pressure hose and the wand, lance, or foam cannon. Pulling the trigger opens the internal ball valve to release water flow; releasing the trigger seals the chamber against incoming hydraulic pressure.

Finding the best pressure washer gun ensures two essential operational roles:

• Control high-pressure water delivery without restricting internal gallons per minute (GPM).
• Provide a safe, fatigue-free interface between the user and high-velocity water jets.

Some stubby short guns combine the handle and nozzle receiver into a single compact housing, while full-size units incorporate threaded barrel extensions to keep high-velocity spray distant from the operator’s feet.

Why Replace the Factory Gun?

Upgrading to one of the best pressure washer guns resolves several common factory hardware limitations:

• The factory trigger requires heavy continuous hand pressure, causing early finger cramps.
• The original plastic gun develops micro-fractures and leaks around internal brass stems.
• The hose connection binds up, forcing the operator to fight continuous hose coils.
• You want a maneuverable stubby gun for vehicle detailing rather than an awkward 3-foot lance.
• You need a standard 1/4-inch quick-connect socket to run aftermarket foam cannons.
• You require an integrated 360-degree ball-bearing swivel to eliminate hose kinking.

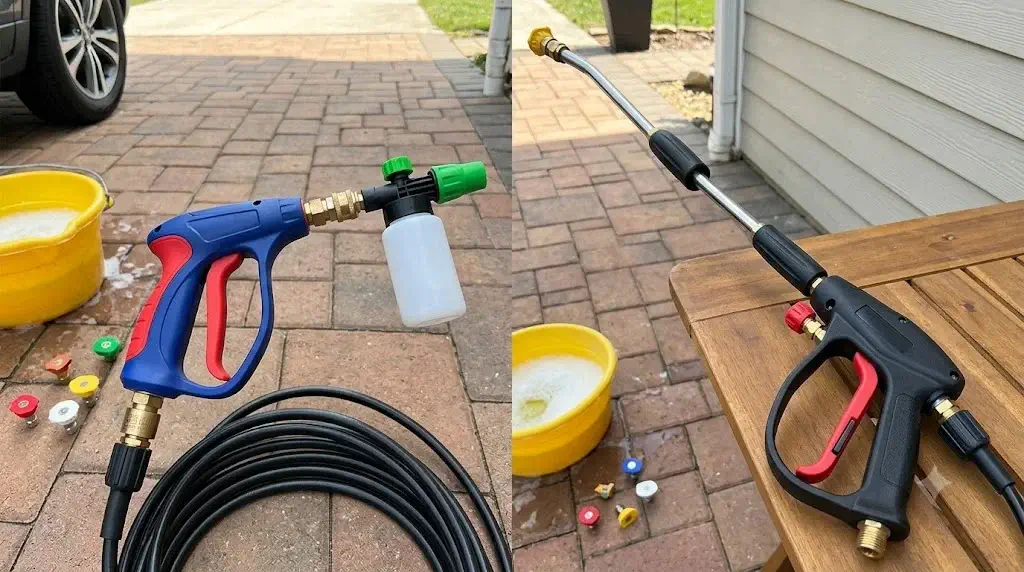

Compact Short Guns Enhance Vehicle Agility While Full-Size Units Maximize Extension Reach

Why Short Guns Are Popular for Cars

A short gun reduces the distance between the operator’s hands and the nozzle. That makes it easier to maneuver around wheels, mirrors, bumpers and narrow areas. The tradeoff is reach. When cleaning a tall wall or siding, a short gun may require the operator to stand closer to the surface.

Why Full-Size Guns Still Matter

A full-size gun and wand provide greater reach and physical separation from the spray. That can be useful when cleaning siding, decks, patios and other large surfaces.

Working Pressure Ratings Defend Valve Seals Against Destructive Hydraulic Pressure Spikes

The gun should be rated for at least the pressure it is expected to handle during operation.

A gun rated for a very high maximum pressure does not make a lower-pressure pressure washer more powerful. The pressure washer pump determines the system’s available pressure.

Peak PSI vs Working PSI

Pressure washer manufacturers sometimes advertise maximum or peak pressure rather than the pressure observed during normal operation.

Do not select a gun solely because its marketing number is higher than your pressure washer’s PSI.

Example

If your pressure washer operates around 2,000 PSI at the gun, a properly rated 3,000-PSI or higher working-pressure gun provides appropriate headroom when its other specifications are compatible. The exact manufacturer rating should always take priority over generic rules.

Gallons-Per-Minute Ratings Ensure Internal Valve Channels Prevent Hydraulic Restriction

GPM is the amount of water flowing through the system. A replacement gun should support the water flow of the pressure washer.

This matters because PSI and GPM describe different aspects of pressure washer performance:

• PSI: pressure.
• GPM: water volume.

A gun designed for a high-flow commercial machine should not be treated as interchangeable with a small consumer gun simply because both use a similar connector.

Why GPM Matters More Than Many Buyers Realize

Higher flow means more water must pass through the gun, hose, wand and nozzle. Internal passages therefore become increasingly important as GPM rises. For a typical residential electric machine, a standard accessory gun may be sufficient. High-flow gas machines require closer attention to flow specifications.

Thread Insert Dimensions Differentiate Incompatible M22-14 and M22-15 Hose Fittings

M22 is a common pressure washer hose and gun connection, but “M22” by itself is not enough information for reliable fitment. Two common configurations are referred to as M22-14 and M22-15, referring to different internal insert dimensions.

Why This Causes So Many Returns

Many pressure washer replacement guns are advertised for multiple M22 configurations. Others are designed for one specific configuration. The safest approach is to identify the connection on your existing hose before purchasing.

Standardized Quick-Connect Outlets Accept Interchangeable Spray Tips and Foam Cannons

The outlet of the gun is often a quick-connect interface for attaching a wand, lance or accessory.

A 1/4-inch quick connect does not mean the gun itself uses a 1/4-inch hose inlet. The inlet and outlet are separate specifications.

Live Ball-Bearing Swivels Eliminate High-Pressure Hose Kinking and Operator Fatigue

A swivel inlet allows the hose connection to rotate relative to the gun. Without a swivel, the operator may need to repeatedly rotate the gun or hose to remove twists from the connection.

Swivel Benefits

• Reduces hose twisting.
• Makes vehicle detailing easier.
• Improves maneuverability.
• Reduces the tendency of the hose to fight the operator.
• Can make long cleaning sessions less frustrating.

Where It Matters Most

Swivel performance is particularly noticeable when washing a vehicle because the operator frequently moves around the machine while the hose remains on the ground. For occasional driveway cleaning, the benefit is smaller but still useful.

Spring-Loaded Trigger Mechanisms and Positive Safety Locks Prevent Accidental Actuation

The trigger is the part you physically operate throughout the cleaning session, so ergonomics matter.

What to Look For

• Comfortable grip circumference.
• Smooth trigger movement.
• Consistent trigger resistance.
• Positive safety lock.
• Good finger clearance.
• Secure connection between gun body and wand.

Trigger Resistance

A trigger that requires excessive force can become uncomfortable during long cleaning sessions. However, a very light trigger is not automatically better. The gun should provide predictable control and a reliable safety mechanism.

Safety Lock

A trigger lock helps prevent accidental operation when the gun is being carried or stored.

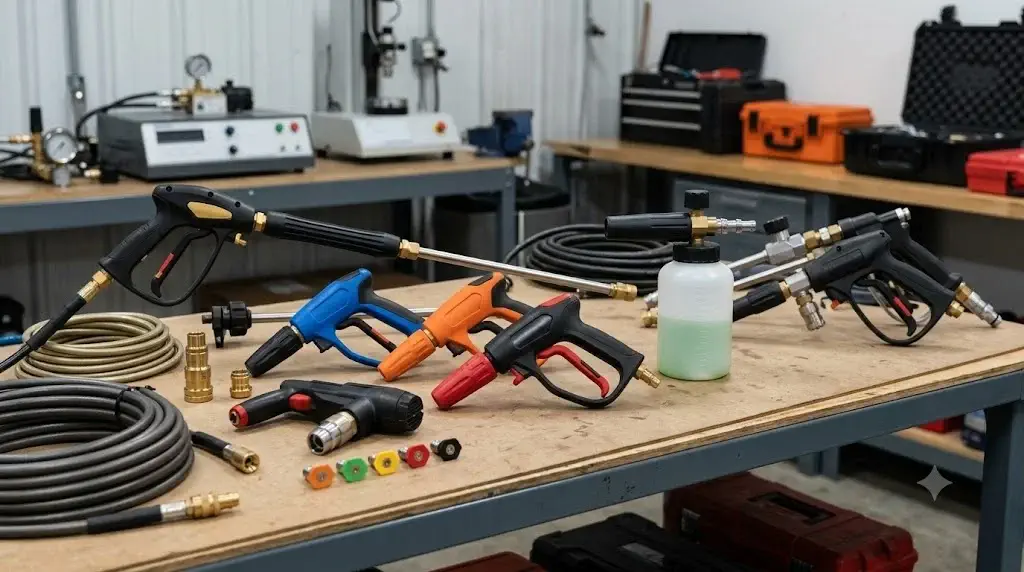

Tested Replacement Guns Deliver Proven Reliability Across Diverse Cleaning Scenarios

Automotive Detailing Demands Low-Profile Short Guns Equipped with Ball-Bearing Swivels

For car washing, prioritize maneuverability rather than maximum PSI.

Recommended Configuration

• Short gun.
• Swivel inlet.
• 1/4-inch quick-connect outlet.
• Comfortable trigger.
• Reliable safety lock.
• Pressure rating above the actual machine output.

The gun itself does not determine whether a pressure washer is safe for automotive paint. The nozzle, distance, spray angle, pressure, flow and operator technique all matter.

Horizontal Flatwork Maintenance Benefits from Extended Wand Reach and Surface Cleaner Integration

Driveway cleaning generally benefits from reach and comfortable control. A full-size gun and wand are often more practical because they let the operator maintain a useful working distance from the concrete.

For large driveways, the gun should also work well with a surface cleaner. The surface cleaner itself does most of the area-cleaning work; the gun is primarily the control interface.

Recommended Configuration

• Full-size trigger gun.
• Longer wand.
• Correct high-pressure hose connection.
• Appropriate working-pressure rating.
• Comfortable trigger.

Residential Property Maintenance Requires Balanced Compatibility Across Multiple Domestic Cleaning Tasks

For a homeowner who uses one pressure washer for cars, patios, furniture and occasional driveway cleaning, a short gun with a standard quick-connect outlet provides the broadest accessory flexibility. If the same machine is frequently used for house siding and elevated surfaces, keeping the original long wand can still be useful.

Commercial Operations Require High-Flow Valve Assemblies Matched to Gas Engine Outputs

Professional pressure washing requires a different selection process. Instead of starting with price or appearance, begin with the machine’s operating PSI, operating GPM, water temperature, hose connection, and accessory connection. Then select a gun that meets or exceeds those requirements.

Why GPM Becomes Important

A professional machine may move considerably more water than a small electric washer. A gun designed around low flow can become a restriction when paired with a high-flow pump. The connection diameter, internal passage and valve design therefore matter more as flow increases.

Thread Pitch and Diameter Verifications Eliminate Interfacing Leaks During Installation

Why “Universal” Is Not a Technical Specification

A universal pressure washer gun may include adapters for several common connections, but that does not mean every pressure washer will connect without modification.

Systematic Depressurization Protocols Ensure Safe Replacement of High-Pressure Handguns

Step 1: Turn Off the Pressure Washer

Switch off the pressure washer before replacing the gun.

Step 2: Shut Off the Water Supply

Close the water source when appropriate for your equipment.

Step 3: Release Residual Pressure

Operate the trigger only according to the pressure washer manufacturer’s procedure to release residual pressure.

Step 4: Disconnect the Existing Gun

Remove the hose from the old gun without forcing a connection that remains pressurized.

Step 5: Check the Seal

Inspect the new gun’s inlet seal, O-ring or sealing surface.

Step 6: Connect the Hose

Thread or quick-connect the hose according to the fitting design.

Step 7: Install the Wand or Accessory

Verify that the quick-connect collar locks fully.

Step 8: Test for Leaks

Start the system according to the manufacturer’s procedure and inspect the connection.

O-Ring Degeneration and Thread Mismatches Account for Ninety Percent of Handgun Leaks

A leaking pressure washer gun does not automatically mean the entire gun is defective.

Common Causes

• Damaged O-ring.
• Incorrect M22 configuration.
• Wrong thread standard.
• Cross-threaded connection.
• Damaged sealing surface.
• Loose threaded connection.
• Worn quick-connect plug.
• Cracked gun body.
• Adapter mismatch.

M22 Leak

If an M22 connection leaks immediately after installing a replacement gun, verify the exact M22 configuration before assuming that additional tightening will solve the problem.

Quick-Connect Leak

Inspect the male plug and female coupler. A damaged sealing surface or worn O-ring can cause leakage even when the components are otherwise compatible.

Threaded Leak

Confirm whether the connection relies on a gasket, O-ring, tapered pipe thread or another sealing method. Do not substitute a random sealant without confirming the fitting design.

Routine Post-Operation Flushing and O-Ring Inspections Prolong Internal Valve Service Life

After Every Use

• Release pressure according to the manufacturer’s procedure.
• Inspect the hose connection.
• Check the quick-connect collar.
• Look for damaged O-rings.
• Rinse dirt from accessory connections.

Before Long-Term Storage

Store the gun in a dry location protected from freezing conditions when required by the equipment manufacturer. Water left inside pressure washer components can create problems in freezing weather.

Do Not Ignore Small Leaks

A small leak may indicate a damaged seal or incompatible connection. Fixing the underlying issue early is preferable to repeatedly tightening the fitting.

Ignoring Flow Rates and Thread Standards Ranks Among the Most Frequent Buyer Errors

1. Buying Based Only on PSI: A higher PSI number does not automatically mean a better gun.
2. Ignoring GPM: The gun must support the water volume of the machine.
3. Assuming All M22 Connections Are Identical: Check the exact M22 configuration.
4. Confusing Inlet and Outlet Size: The hose inlet and accessory outlet can use different standards.
5. Ignoring Thread Gender: Male and female connections must form a compatible pair.
6. Choosing a Long Gun for Car Detailing: Long reach is useful for homes but can make vehicle work less maneuverable.
7. Choosing a Short Gun for Tall Siding: Compact size comes at the expense of reach.
8. Using Too Many Adapters: Each adapter introduces another connection and potential leak point.
9. Ignoring the Swivel: A swivel can significantly improve hose management during vehicle cleaning.
10. Reusing Damaged O-Rings: Seals are inexpensive compared with replacing an entire gun.
11. Assuming “5000 PSI” Means Professional Quality: A marketing pressure number does not describe the entire valve, trigger, seal or connection design.
12. Forgetting Temperature Rating: If a pressure washer uses hot water, the gun must be rated for the actual water temperature.

Decision Trees Match Physical Layouts and Flow Demands to Optimal Handgun Configurations

Engineered Specification Weightings Demonstrate Why Fitment Supersedes Maximum PSI Claims

A pressure washer gun is a control component, not a pump. It cannot create additional hydraulic power. The most useful ranking factors therefore change depending on the application.

This is why a lower-priced, correctly fitted gun can be a better purchase than an expensive model with a much higher advertised PSI rating.
