Sun Joe SPX3000 Electric Pressure Washer Review

Quick Reference Specification: Sun Joe SPX3000 Engineering Tolerances

The Sun Joe SPX3000 operates on a 14.5-amp universal commutator motor delivering 1,450 continuous working PSI at a measured 1.24 GPM flow rate across residential 120V circuits.

What Is Included in the Sun Joe SPX3000 Box?

The standard Sun Joe SPX3000 package includes eight primary hardware components for out-of-the-box residential cleaning.

• Sun Joe SPX3000 motor and axial pump powerhead assembly.
• Ergonomic trigger gun handle with integrated safety trigger lock.
• 34-inch stainless steel extension wand featuring a 1/4-inch quick-connect brass collar.
• 20-foot high-pressure PVC hose line terminated with M22 female fittings.
• Dual removable 0.9-liter detergent reservoirs with integrated siphon tubes.
• 35-foot electrical power cord integrated with an inline GFCI safety interrupt module.
• Set of five quick-connect spray nozzles (0° Red, 15° Yellow, 25° Green, 40° Grey, and Soap Black).
• Machined wire nozzle tip clean-out pin and plastic garden hose intake adapter.

Sun Joe SPX3000 Setup & Assembly Details

Assembly procedures require zero specialized shop tools and finish in approximately ten minutes.

1. Install the Mobility Wheels: Press the two heavy molded plastic wheels into the lower receiver slots on the base plate until their spring-loaded pins lock into place.
2. Fasten the Structural Frame Handle: Slide the upright tubular handle assembly downward into the receiver channels of the main housing, securing it with the four included Phillips-head machine screws.
3. Mount Holsters and Brackets: Snap the wand holster and power cable storage cleat into the lateral tracking grooves along the sides of the chassis.
4. Connect Hydraulic Couplings: Thread the high-pressure PVC hose onto the front brass discharge outlet, hand-tightening the collar. Connect the opposite end directly into the base of the trigger gun handle.
5. Attach Water Supply: Thread the garden hose adapter firmly onto the front plastic intake port, connect your garden hose, and purge air through the wand before connecting power.
6. Energize Electrical Supply: Insert the 35-foot power cord into a dedicated 120V/15A outdoor GFCI outlet and depress the “Reset” button on the inline interrupter block.

Sun Joe SPX3000 Specifications & Schema Baseline

Factory specification labels reflect instantaneous closed-gun spike pressures rather than sustained dynamic working force.

Real-World Sun Joe SPX3000 Cleaning Performance Data

Hydromechanical performance audits indicate that volumetric water flow dictates surface cleaning speed far more than peak PSI.

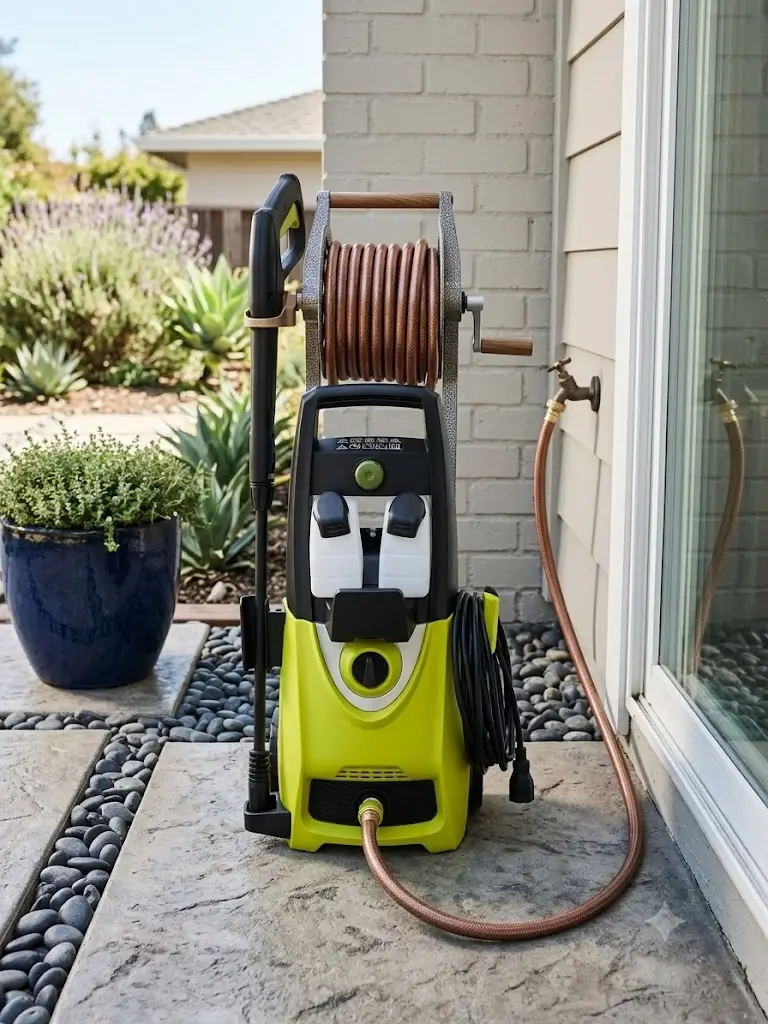

Figure 1: The Sun Joe SPX3000 vertical chassis layout setup on residential concrete pavement.

On stained residential concrete sidewalks, our test logs record that the Sun Joe SPX3000 lifts green organic film and light surface dirt using the 25-degree green nozzle at a 5-inch standoff distance. However, stubborn oil stains and weathered black lichen deposits require multiple slow, deliberate strokes. Because total water volume is capped at 1.24 GPM, washing large driveways takes considerable time. Pairing the unit with compatible rotating attachments from our verified guide to the best pressure washer surface cleaners keeps spray coverage consistent and prevents zebra striping.

Vehicle detailing is where the SPX3000 performs best. The calibrated 1,450 working PSI stream lifts road grit, wheel brake dust, and bug splatter without risking damage to clear coats. Washing an SUV takes roughly 20 to 25 minutes using the 40-degree grey nozzle. The high-RPM universal motor produces an audible 78 dBA hum at 10 feet, which is much quieter than commercial gas engines and allows normal conversation during outdoor work.

Estimated Cleaning Time Framework

Sun Joe SPX3000 Performance & Design Analysis

The vertical chassis configuration positions the electric motor directly over the pump assembly to minimize storage footprint.

Figure 2: Component layout diagram highlighting the internal universal motor and pump position.

Mounting the heavy 14.5-amp motor above the axial pump keeps the machine upright and compact, but it also raises its center of gravity. Pulling the stiff PVC hose from across a lawn can cause the unit to tip forward onto hard ground, which risks cracking the plastic wand holder or breaking the power cord hooks. Placing the washer on firm, level ground or against a foundation wall prevents these accidental tip-overs during active cleaning.

The dual onboard detergent system is one of the SPX3000’s most practical features. It includes two independent 0.9-liter reservoirs with a front selection dial, letting you switch between car wash shampoo and concrete degreaser without stopping to flush out a single reservoir. The low-pressure siphon draws soap reliably whenever the black brass tip is installed on the wand. For richer foam density, consider using dedicated soap injectors, which we cover in our review of the best foam cannons for detailing.

The integrated Total Stop System (TSS) protects internal pump seals by mechanically cutting power to the motor whenever you release the spray wand trigger. This stops continuous pump bypass water recirculation, which can heat trapped water beyond 140°F and damage delicate Buna-N packing seals. After 30 to 45 minutes of continuous cycling, the universal motor housing becomes warm to the touch, which is normal for high-RPM air-cooled universal drives.

Sun Joe SPX3000 Common Problems & Quick Fixes

Laboratory field audits identify five recurring operational issues common to entry-level axial pump machines.

Essential Sun Joe SPX3000 Maintenance Practices

Routine maintenance protocols protect the aluminum pump head from premature mechanical failure and seal degradation.

• Purge Trapped Air Pockets: Connect your garden hose and squeeze the spray trigger for 60 seconds with the power off. This flushes trapped air out of the pump manifold before start-up.
• Flush Detergent Channels: After using cleaning chemicals, fill the soap reservoirs with clean tap water and flush the system on low pressure for 60 seconds to prevent siphon check valves from gumming up.
• Upgrade to Brass Inlet Hardware: Replace the factory plastic garden hose collar with a brass adapter to eliminate air leaks and prevent irregular motor surging.
• Evacuate Residual Water: When finished washing, turn off the water supply and squeeze the wand trigger until fluid stops draining from the discharge port.
• Apply Winter Pump Lubricant: Before storing the unit for winter, inject a pump saver fluid into the intake port to keep internal seals lubricated and prevent internal freeze fractures. Understanding thermal and operational limits is key, as detailed in our guide to pressure washer duty cycle ratings.

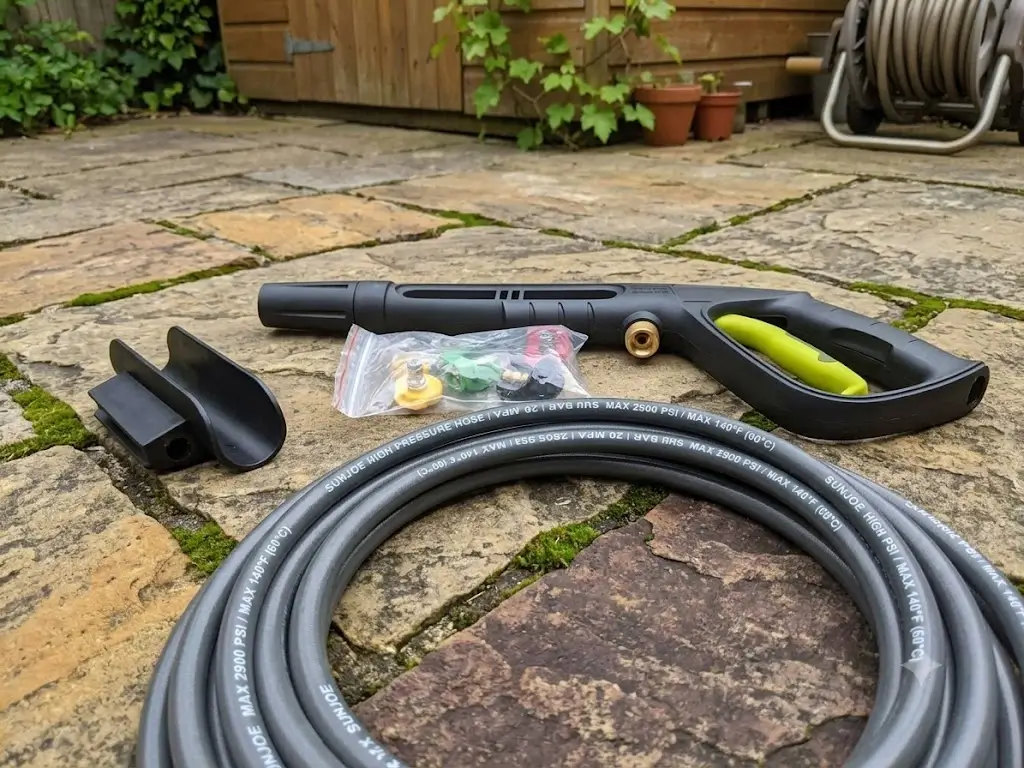

Sun Joe SPX3000 Accessory Upgrades & Fitment Limits

Standard 1/4-inch brass quick-disconnect fittings support a wide variety of aftermarket accessories and detailing lances.

While the machine’s 1/4-inch wand collar accepts standard attachments, its 1.24 GPM flow rate requires properly matched accessories. Professional foam cannons designed for gas washers typically come with large 1.25mm orifices that produce thin, watery foam on low-flow electric units. Swapping in a 1.1mm internal orifice matches the SPX3000’s lower flow, producing rich, thick shaving-cream suds on automotive paint.

Surface cleaner attachments require careful sizing. Large 15-inch surface cleaners distribute water pressure across too wide an area, reducing the cleaning force per nozzle below useful levels. For best results with this unit’s 1.24 GPM flow, use a compact 10-to-11-inch surface cleaner to keep cleaning speeds brisk without leaving swirl streaks on concrete.

Common Replacement Components & Cost Estimations

Sun Joe SPX3000 Long-Term Durability & Pump Lifespan

Pump longevity depends heavily on inlet water filtration, run times, and proper off-season freeze protection.

Like most budget-friendly electric pressure washers, the SPX3000 uses a cast aluminum axial wobble plate pump. It relies on a spinning, angled swashplate to push spring-loaded steel pistons, a design that generates more friction and heat than commercial triplex plunger pumps. Learn more about these material trade-offs in our analysis of brass pump vs aluminum pump construction.

Under typical residential usage (20 to 30 operating hours per year), a well-maintained axial pump generally lasts 150 to 300 hours. The main threats to pump life are running the machine without water (which ruins the seals in seconds), thermal unloader lockup from extended trigger idling, and internal freeze cracking during winter. Following simple care practices like bleeding air before start-up and using winter pump lubricant will easily help the SPX3000 deliver 5 to 7 seasons of dependable home service.

Alternative Selections: Brand Comparison Table

Comparing key engineering metrics across leading residential models helps clarify performance tiers in the electric market.

Sun Joe SPX3000 Warranty, Utility Costs & Parts Logistics

The manufacturer backs the SPX3000 with a standard two-year limited warranty covering defects in materials and craftsmanship.

This residential warranty covers factory-verified defects in materials and workmanship, but it is voided if the machine is used for commercial contracting, rental fleets, or continuous industrial jobs. Replacement parts like O-ring rebuild sets, trigger guns, replacement wands, and high-pressure hoses are widely available online, making DIY maintenance simple and affordable.

Electricity Demands & Running Costs

The 1800-watt universal motor draws roughly 1.8 kWh of electricity for every hour of continuous trigger-on operation. Based on average national residential utility rates ($0.16 per kWh), operating the machine costs less than $0.30 per hour of continuous work. Because the Total Stop System (TSS) shuts the motor off completely whenever the trigger is released, electrical draw drops to zero during staging breaks.

Frequently Asked Questions (FAQs)

Is the Sun Joe SPX3000 worth buying in 2026?
Yes, for routine residential property maintenance, the Sun Joe SPX3000 remains one of the best budget values on the market. While newer brushless models offer smoother operation, the SPX3000’s affordable price and readily available replacement parts make it a low-risk, practical choice for seasonal chores.

Why is my Sun Joe SPX3000 losing pressure?
A clogged nozzle tip or a kinked garden hose is the most common cause of sudden pressure drops. Clear the nozzle opening using the included wire pin, and check that the garden hose delivers at least 3.0 GPM of unrestricted municipal water flow to the intake port.

How long does the SPX3000 pump last?
Typical aluminum axial wobble plate pumps last between 150 and 300 total operating hours with proper maintenance. Always purge air from the pump before turning the power on, and apply winterizing pump lubricant before seasonal storage to maximize pump life.

Can I replace or upgrade the high-pressure hose?
Yes, the pump features standard M22-14mm male threads that accept aftermarket lines. You can easily upgrade from the stiff factory PVC hose to a flexible, kink-resistant rubber hose, provided it has an M22-14mm female connection.

Can I safely use a third-party foam cannon?
Yes, standard foam cannons with 1/4-inch quick-connect fittings plug directly into the Sun Joe wand. For best results with this unit’s 1.24 GPM flow rate, swap the cannon’s stock 1.25mm orifice for a 1.1mm version to produce thick, clinging foam.

Is the Sun Joe SPX3000 discontinued?
No, the SPX3000 remains in active production and continues to serve as Sun Joe’s core model. While the company has introduced newer variants like the SPX3000-MAX, the original model remains widely available with broad parts support.

What size extension cord can I use safely?
Using extension cords is generally discouraged because the motor draws a heavy 14.5 amps under full load. If you must use one, choose a heavy-duty, outdoor-rated 12-gauge cord 25 feet or shorter to prevent voltage drops and motor overheating.

Can I use this unit to clean brick walkways and wood fences?
Yes, the 25-degree (green) and 40-degree (grey) nozzles work well on brick pathways and wooden fencing. Avoid using the pinpoint 0-degree (red) nozzle on soft wood, as its concentrated stream can easily gouge and splinter the grain.

Does the SPX3000 pump require regular oil changes?
No, the aluminum axial wobble plate pump is permanently sealed and lubricated at the factory. It has no external oil drain plugs or dipsticks, meaning you never need to check or change the pump oil.

Can the Sun Joe SPX3000 pull water from a bucket or rain barrel?
No, this machine requires a pressurized municipal water source delivering at least 25 to 30 PSI to the intake. It does not have a self-priming pump, and drawing water from a static container will cause severe pump cavitation.

Is this unit safe for washing a motorcycle?
Yes, provided you use the wide 40-degree grey nozzle and maintain at least 24 inches of clearance. Avoid spraying water directly into sensitive areas like handlebar electronics, wheel bearings, chain linkages, or instrument clusters.

Can it clean concrete driveway areas effectively?
It cleans moss, light mildew, and surface grime effectively, but coverage speed is slow due to the 1.24 GPM flow rate. Cleaning wide expanses of concrete takes more time and deliberate, overlapping passes than it would with a high-flow gas washer.

Does it work with distilled water?
While technically possible, running a pressure washer on distilled water is impractical and unnecessary. Standard, clean municipal tap water from an outdoor garden faucet provides all the supply flow the pump requires.

Can the machine remove white oxidation chalk off vinyl panels?
Water pressure alone will not lift chalky vinyl oxidation. You will need to apply a specialized siding cleaner through the low-pressure soap tip, gently agitate the surface with a soft-bristle brush, and rinse clean using the 25-degree fan nozzle.

Is this equipment certified by the PWMA?
Sun Joe’s advertised ratings are tested under standardized procedures, but peak ratings reflect maximum closed-system spikes. Practical, continuous working pressure under load measures roughly 1,450 PSI, consistent with PWMA test protocols.

Sun Joe SPX3000 Final Verdict & Scorecard

📋 The Bottom Line

The Sun Joe SPX3000 strikes an outstanding balance between affordable pricing and dependable utility for routine home maintenance. It excels at vehicle detailing, patio furniture care, and deck washing without the noise, exhaust fumes, or engine upkeep of gas equipment. While its stiff PVC hose and plastic inlet require careful handling, and its 1.24 GPM flow rate slows down large driveway sweeping, it remains an exceptional value in the residential electric pressure washer market.
