What Are Cleaning Units (CU)? Pressure Washer Guide

Pressure washer marketing relies on a predictable retail tactic: displaying inflated Pounds per Square Inch (PSI) numbers on product packaging. Big-box home improvement retailers across the United States—from Home Depot and Lowe’s to Tractor Supply Co.—stock shelves with machines highlighting 3,000, 4,000, or 4,400 PSI.

For the average consumer, higher pressure sounds like superior stripping power. In actual fluid dynamics and field cleaning operations, evaluating a machine strictly by its static pressure rating causes surface etching, ruined wood fibers, premature pump failure, and sluggish cleaning cycles.

The single metric that dictates how fast, deep, and effectively a pressure washer works is Cleaning Units (CU). Industry professionals and mechanical engineers also refer to this as Cleaning Power Units (CPU) or Effective Cleaning Units (ECU). To compare machines built for residential properties, explore our complete guide on the best electric pressure washers for houses.

PSI supplies the concentrated mechanical shear stress needed to break the chemical adhesion and mechanical bond between a contaminant (such as dried mud, road film, biological algae, or oxidized paint) and a substrate.

Gallons per Minute (GPM) supplies the kinetic fluid mass required to suspend, lift, and flush that broken debris off the work area. If a machine generates high PSI without sufficient GPM, it acts like a liquid needle: cutting narrow furrows into dirt without washing it away. If a machine outputs high GPM with low PSI, it behaves like an open garden hose: plenty of rinse volume, but incapable of fracturing stubborn bonds.

Cleaning Unit Formulas Quantify Effective Work Capacity Across Outdoor Equipment Tiers

Mathematical products of working pressure and volumetric discharge establish empirical cleaning velocity benchmarks across residential and commercial categories.

Technical Evaluation Methodology Anchors Recommendations in Physical Pressure and Flow Metrology

Laboratory test procedures record dynamic working pressures, electrical inrush amperages, and pump manifold thermal tolerances across continuous duty runs.

Our technical editorial team evaluates outdoor power equipment through mechanical engineering principles, fluid dynamics, and long-term ownership economics. We do not accept free promotional units from manufacturers, nor do we run paid placement rankings.

Every evaluation and benchmark is anchored by:

• Physical pressure and volumetric flow measurements using inline fluid gauges and calibrated flow meters.
• Internal teardown analysis of pump manifolds, unloader valves, ceramic plungers, and swash plates.
• Real-world electrical testing measuring running amperage and starting inductive inrush currents on standard North American 120V/240V circuits.
• Long-term teardown data analyzing thermal degradation within bypass loops, seal extrusion, and valve cavitation.

Hydrodynamic Physics Distinguishes Mechanical Bond Cleavage from Downstream Mass Transport

Fluid momentum transfers mass and compressive stress simultaneously to disrupt dirt matrixes without exceeding substrate yield points.

To understand Cleaning Units, you must separate the two distinct physical processes that occur during pressure washing: mechanical bond fracture and mass transport.

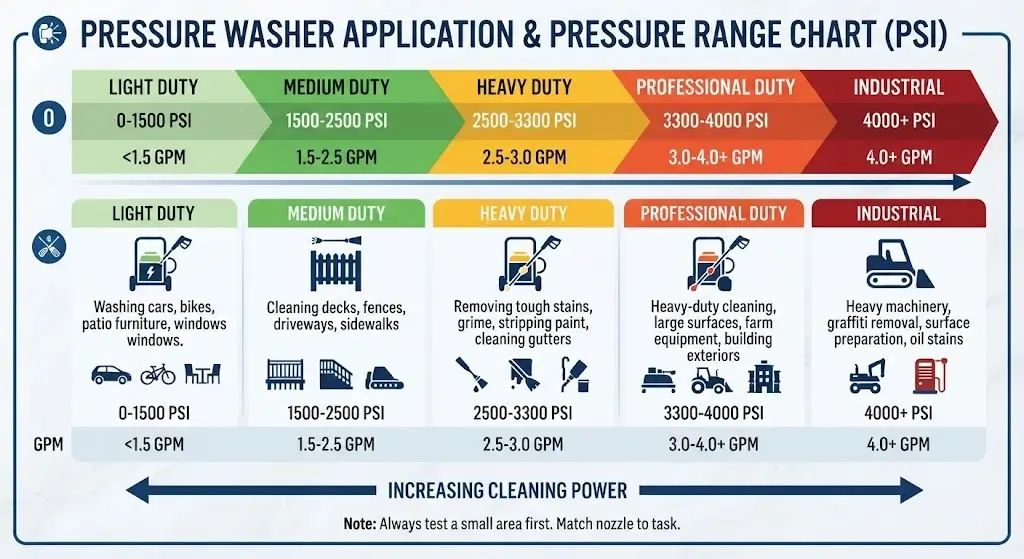

Figure 1: Pressure (PSI) range requirements and substrate application guide for exterior washing.

PSI: Mechanical Bond Fracture

Pounds per Square Inch (PSI) measures the static hydraulic force exerted upon one square inch of surface area. PSI provides the localized shear stress necessary to overcome the adhesive and tensile forces holding dirt, mildew, paint, or grease to a substrate.

Every material has a critical yield threshold. Standard concrete cream coats etch at pressures exceeding 3,000 to 3,500 PSI when using tight nozzles. Softwoods (such as cedar, redwood, and southern yellow pine) gouge at pressures over 1,200 to 1,500 PSI. Automotive clear coats risk delamination above 1,900 to 2,000 PSI.

GPM: Kinetic Mass Transport

Gallons per Minute (GPM) measures the volumetric flow rate passing through the pump and exiting the nozzle orifice. Water has mass (8.34 lbs per gallon). GPM represents the total physical mass hitting the surface per unit of time.

Higher flow rates allow operators to step up from narrow 15-degree nozzles to wide 25-degree or 40-degree nozzles without losing the minimum impact force needed to dislodge dirt. This widens the effective cleaning path per pass, cutting job times significantly.

Pump Mechanical Design Determines Total Sustainable Cleaning Units and Operating Duty Cycles

Drive mechanisms govern heat dissipation inside the fluid manifold, separating disposable consumer pumps from industrial crankshaft systems.

A motor or engine only provides rotational shaft torque. The high-pressure pump converts that mechanical energy into fluid flow and pressure. The structural design of that pump directly determines how many Cleaning Units a machine can sustain, its thermal tolerance, and its total service life. For internal component comparisons, review our technical breakdown on axial cam vs triplex pumps.

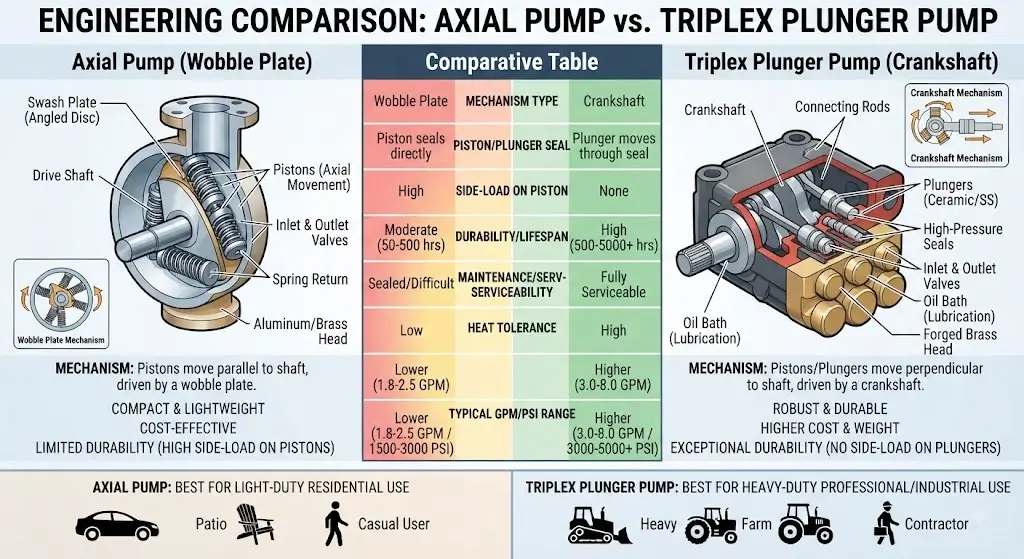

Figure 2: Mechanical architecture of an Axial Cam Pump versus a commercial Triplex Plunger Pump.

Field Cleaning Benchmarks Prove That Higher GPM Drastically Reduces Project Completion Time

Higher volumetric flow rates support wider rotary surface cleaners, reducing total flatwork project durations by up to 75%.

To illustrate why Cleaning Units and volumetric flow dictate job speed, review this field test benchmark comparing two machines on an identical 1,000 sq ft concrete driveway slab (see our comprehensive guide on how to clean a concrete driveway for proper chemical-mechanical sequencing):

Specification Comparison Matrices Contrast Consumer Electric and Industrial Gas Equipment

Performance benchmarks reveal significant work index variances between lightweight consumer universal units and commercial belt-drive machines.

Nozzle Orifice Sizing Regulates System Backpressure and Discharge Velocity

Calibrated nozzle throat diameters convert fixed pump flow displacement into target dynamic operating pressures.

A pressure washer does not output a fixed, unchangeable PSI. The pressure rating stamped on the pump is simply the back-pressure generated when a specific volume of water is forced through a precise nozzle orifice diameter. Refer to our detailed pressure washer nozzle guide for complete degree fan charts and orifice sizing formulas.

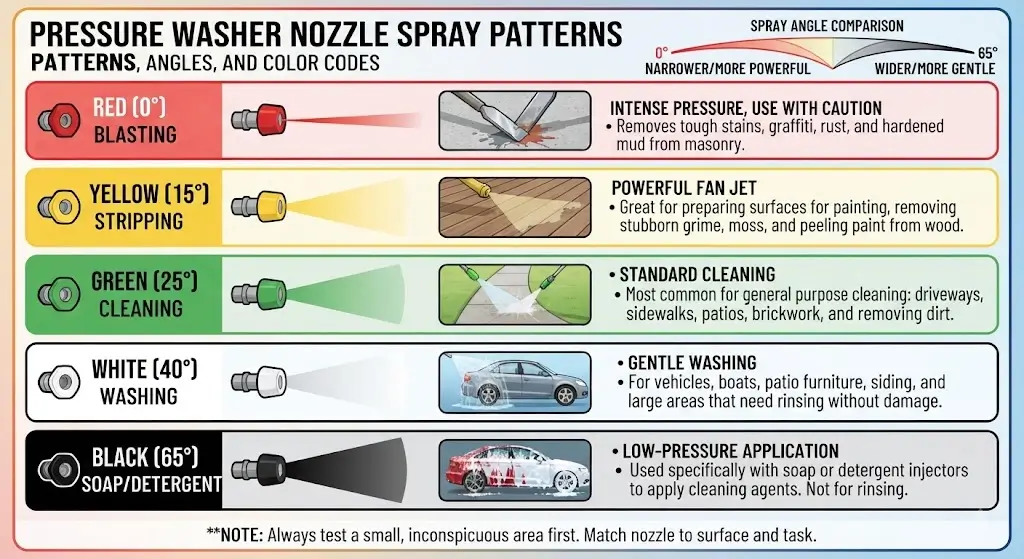

Figure 3: Color-coded nozzle degree angles, mechanical impact profiles, and surface compatibility.

• If the nozzle orifice is too small: The restriction creates excessive back-pressure. The pump exceeds its operating limits, and the unloader valve opens, dumping water into the bypass loop. You lose working GPM at the wand tip, and the pump heats up rapidly.
• If the nozzle orifice is too large: The pump cannot build sufficient back-pressure against the oversized opening. The machine delivers its full GPM, but system PSI drops, lowering total Cleaning Units and weakening the stream’s stripping power.

Critical Infrastructure Factors Limit Real-World Pressure Washer Duty Cycles

Electrical circuit amperage ceilings, spigot supply deficits, and bypass heating constrain actual machine runtimes.

1. Electrical Supply and Extension Cords

Electric pressure washers rated above 2,500 CU pull significant current. A 14-amp motor operating on a 15-amp breaker will trip the circuit if used with an undersized, light-gauge extension cord. Long, thin cords create a voltage drop that starves the motor, causing higher amp draw and thermal tripping.

For induction machines rated above 1.8 GPM (like the AR630), run exclusively on a dedicated 20-amp circuit with a 12-gauge or 10-gauge cord (maximum 50 feet).

2. Water Supply Verification (The Garden Hose Bottleneck)

A pressure washer cannot output more water than your garden spigot supplies. Operating a high-flow pump with an inadequate supply causes cavitation—the formation and sudden implosive collapse of vapor bubbles inside the pump manifold. Cavitation erodes brass heads, micro-pits ceramic plungers, and ruins check valves within minutes. To minimize friction loss across long supply runs, see our pressure washer hose guide for recommended inner diameters.

3. Bypass Thermal Management

When you release the spray gun trigger, the unloader valve diverts high-pressure water into a continuous internal bypass loop within the pump manifold. Direct-drive axial pumps contain less than two cups of water; in bypass mode, friction heats this trapped water by 20°F to 40°F every 30 seconds.

When water temperatures exceed 140°F, internal Buna-N rubber packings melt and check-valve cages distort. Rule of thumb: Never leave a gas-powered machine idling off-trigger for more than 60 seconds.

4. Winterization and Storage

Allowing residual water to freeze inside a pump manifold is the leading cause of pressure washer failure across the United States. Water expands by 9% upon freezing, generating over 20,000 PSI of hydrostatic force—easily cracking forged brass pump heads.

Before winter storage, pull Pump Guard / RV Antifreeze into the garden hose intake until it discharges out the high-pressure outlet.

Frequently Asked Questions Address Common Cleaning Unit Conflicts and Sizing Rules

Technical support records resolve user inquiries regarding surface cleaner sizing, paint stripping risks, and direct-drive limitations.
